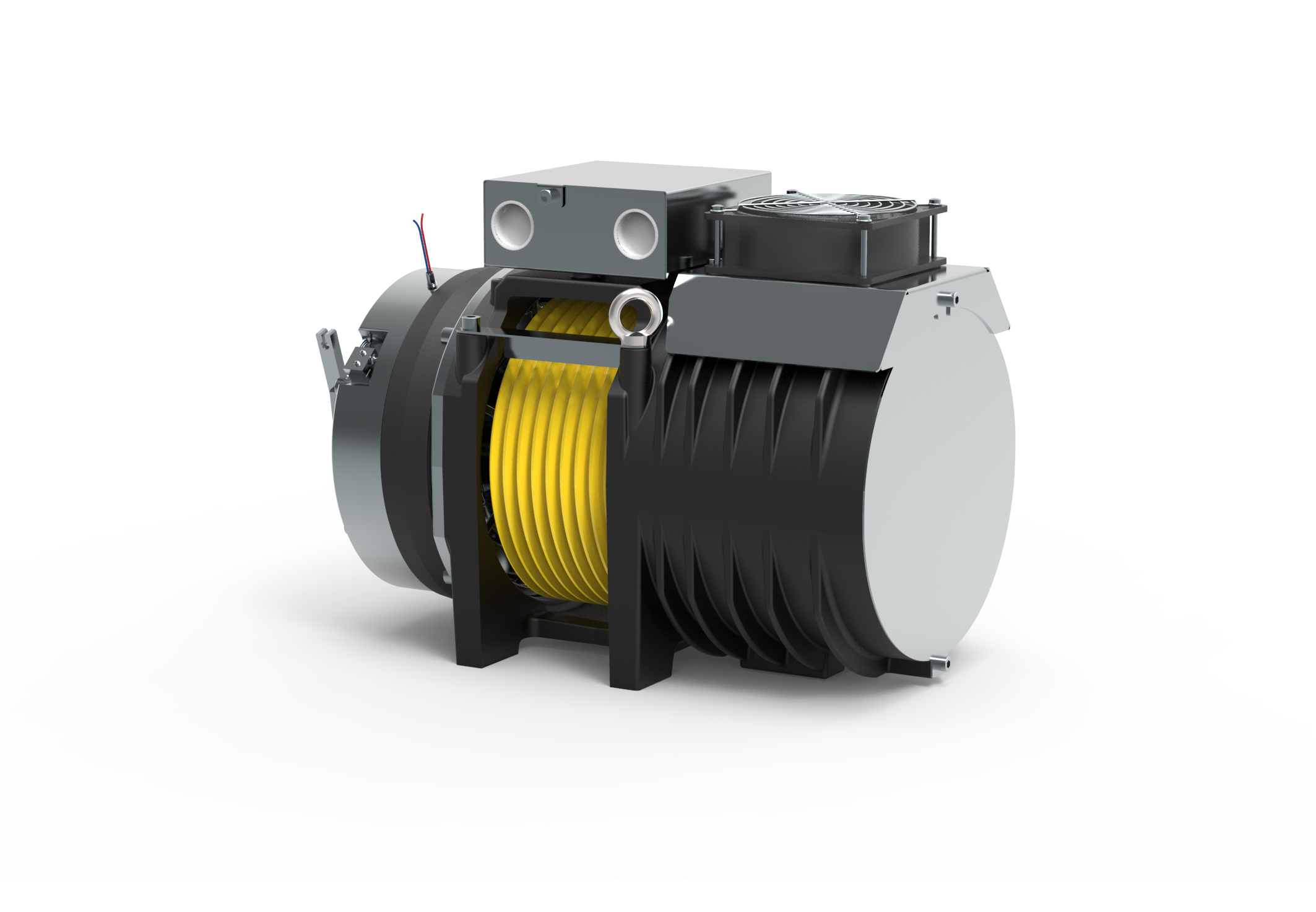

ET6B

Machine Motor Gearless

Maximum static load: 2000 kg
Maximum gearless weight: 94 kg
Supply voltage: 360V – 208V
The SGS6135B gearless model has been specifically developed for lifting applications in 2:1, homelift or residential ones with load capacity starting from 225kg.

Technical Features

  • Pulleys, with diameters equal to or less than 210mm, are made in steel C40 UNI 7845 hardened type, with hardness over 50 HRC;
  • Range of Italian-built motors, protection class F and IP21 insulation; forced ventilation by means of air fan as standard equipment;
  • High motor efficiency which enables direct torque generation, eliminating the need of mechanical reduction. Increase efficiency of the machine and reduction in energy consumption, are granted;
  • Vibration-free operation and noise levels (within the VDI 2566 range)<60 dB;
  • Certified brakes granting maximum reliability and can be used to prevent uncontrolled upward movements;
  • The wide range of motors and pulleys enables the user, with the aid of our internal configurator, to select the most compact machine with the lowest levels of energy consumption;
  • Quick adjustment and setting (by means of the autotuning function) thanks to SICORVERT drives or other main brands.
