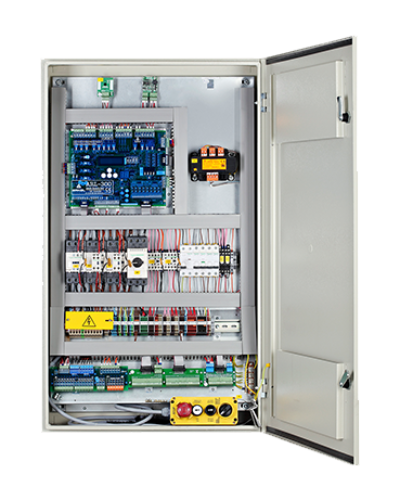

ET 300 Panel

ET 300 Panel

Compliance to Standards
EN 81/1-2 + A3
Control Type
Simple Control One-way picking Two-way picking
Elevator Speed
1,6 m/s
Serial Communication
With Cabin
Automatic Door Control
Single Door, Double Door
Display Outputs
7 Segments, Gray/Binary Code LCD Output

Number of Stops
24 Stops
Drive Type
Double Speed, Hydraulic, VVVF
Group Control
4
Cabin Position Information
Magnetic Switches
Door Bridging
Available
Language Options
Turkish, English, Russian, Dutch, Romanian, German, Italian

Advantages of Using the ET 300 Panel System

Series Cabinet Installation
System Supports by Floors
RK22 revision box support up to 16 stops and serial cabinet installation Addition of 1 FX_SERI_32 card on 16 stops and RK32 revision box support and serial cabinet installation
Door Control
Door Control
Any kind of automatic door control
Bringer to Floor
AKUS-SD
With integrated AKUS-SD bringer to floor in the panel
Safety Circuit Connections
KBK-5
Connection for safety circuit by KBK-5 card

Parallel cabinet installation up to 16 stops
Parallel floor installation
Dual auto door control with 2 Auto_Kg card additions
Emergency lowering system (for hydraulic elevators) with ARL-SARJ card and 2 12V battery additions
Opening the door early and renewing the open door level
