ELEVATOR INSTALLATION

In general, elevators are indispensable for almost every building. Elevator; Especially, it is one of the devices that are of great importance at the exit to high floors. It is essential for those who have baby, or the elderly or the sick. When buying or renting a house, especially if there is an elevator or not, it is generally not preferred if there is no elevator or if the building is high-rise. So, what should be considered when installing the elevator? If you are curious, check out our article

What Should Be Considered In Elevator Installation?

Before the elevator assembly is made, preliminary preparations should be made and it should be checked whether it is suitable for assembly. For this, the following checks are carried out respectively
  • Are the apparatus, machinery and equipment required for the assembly process ready for operation? This should be checked.
  • Are the materials coming according to the project technical documents intact? Damage or numerical checks are made.
  • Are there moisture or wetness at the bottom of the well? Is the well below empty? This should be checked.
  • Is the electrical installation durable? Is there a problem for the mounting? Main feed line has to be controlled according to OHS rules and technical documents.
  • Does the scaffolding position affect the elevator dimensions to be made according to the technical documents? This is checked.
  • Is the working distance sufficient? This is checked.

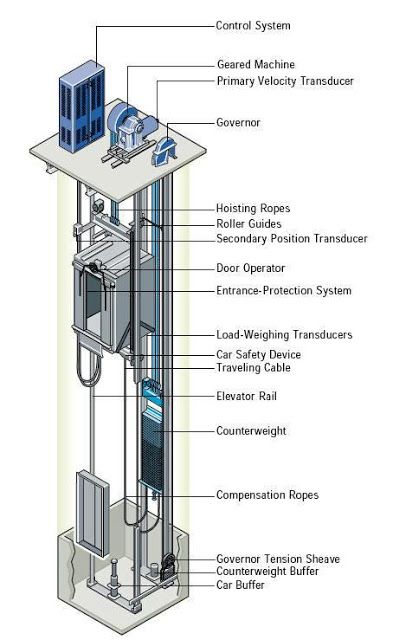

Step by Step Elevator Installation

Infinitive determination is made above and below the well according to the values ​​given in the technical documents. The upper gauge is taken as reference, the plumb is thrown and the lower gauge is fixed. Wall consoles are fixed in an adjustable manner. The first length rails are taken to the well in accordance with the OHS rules.

Rail frame distance is checked according to the dimensions specified in the technical documents. Necessary settings are made for the operation of the door with the feature specified in the technical instructions

Rail frame distance is checked according to the dimensions specified in the technical documents. Necessary settings are made for the operation of the door with the feature specified in the technical instructions

Car and counterweight frame to be mounted on the balance between the rails. As much as the operation of the system, the number of weight-bearing carrier frames suitable for the technical procedure must be aligned. Ropes should be cut according to the dimensions specified in the technical documents. It is necessary to check whether the floor of the cabin is in scale or not. If it is at a suitable distance to the door, it must be mounted on the frame. Cabinet side wall, cabinet ceiling and above equipments should be mounted depending on technical documents

The assembly of the regulator and the regulator rope should be mounted according to the rules specified in the technical documents and according to the functioning state of the mechanism.

According to the dimensions given in the technical documents, the location of the control panel is determined and the assembly process is performed. Electrical connections, control system connections, photocells, lighting, fan connections should also be made in accordance with the electrical installation project specified in the technical documents.

Cabin and counterweight buffers, counterweight separator, balance chain, pit ladder, and shaft bottom apparatus of the balance chain should be mounted in accordance with technical documents and standards. If an elevator is installed within the framework of these rules, a correct application will be made.
