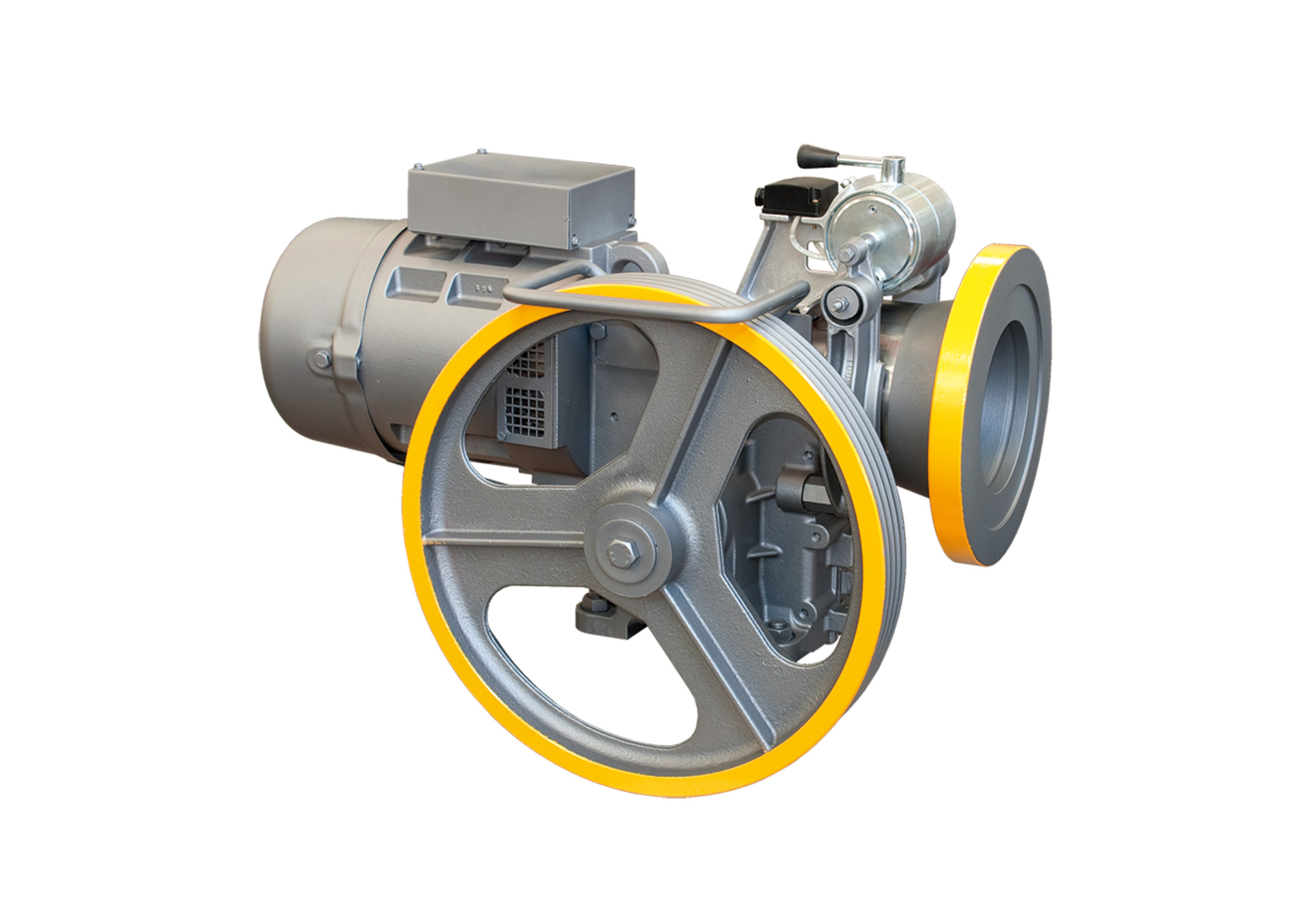

ET12

Machine Motor Gear

Maximum static load: 2600 kg
Reduction ratio: 1/52; 1/45; 1/43; 2/53; 2/43
Gear weight: 240 kg
Oil capacity: 3.8 l (Shell Omala S4 WE)
Power range VVVF: 2.7 – 6 kW 50/60 Hz
Power range AC2: 2.7 – 6 kW 50/60 Hz
Produced for system with a 480 kg capacity.

This winch has long been the best seller worldwide, with more than 400,000 units installed in over sixty countries.

Technical Features

  • Complete range of motors in versions vvvf and ac2
  • Forced ventilation motor (as standard) which enable 240 windings/hour for inverter-capable motors (acvvvf) or 180 windings/hour for two-speed version motors (ac2);
  • Traction pulleys built using spheroidal cast iron en-gjs-700-2-uni en 1563, a highly resistant material with minimum hardness of 250 hb. Diameters between 340-600 mm;
  • Predisposition for incorporating an ssb brake device in accordance with the recent en 81-80 and a3 guidelines, as option feature
  • Electromagnetic braking system with exceptional electric and mechanical features
