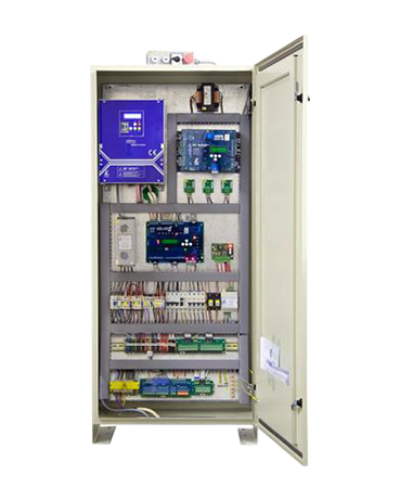

ET 200 Panel

ET 200 Panel

  • Compliance to Standards
    En81-1
  • Control Type
    Simple Control Up or Down Collecting Double Button Collection
  • Elevator Speed
    1,6 m/s
  • Serial Communication
    With Cabin
  • Automatic Door Control
    Single Door
  • Display Outputs
    7 Segments
  • Number of Stops
    16 Stops
  • Drive Type
    Single Speed Double Speed Fast Speed
  • Group Control
    2
  • Cabin Position Information
    Magnetic Switches
  • Door Bridging
    Not Available
  • Language Options
    Turkish, English, Dutch, Romanian, French

Advantages of Using the ET 200 Panel System

  • Safety Circuit Connections
    KBK-5
    Special connection for safety circuit with KBK-5 card support
  • Binary/Gray Code Outputs
    GKS Card
    Binary/gray code output with GKS card addition (Optional)
  • Series Cabinet Installation
    RK22 Revision Document
    RK22 revision box support and serial cabinet installation (Optional)
  • Door Control
    Door Control
    Any kind of automatic door control
  • Parallel cabinet installation
  • Parallel floor installation
  • Double door control with 1 Auto_Kg card addition for each door
  • AKUS-SD afferent to floor with built-in the panel (optional)
  • With MKR-02C motor-phase protection card support
  • With magnetic switch and magnets
